Windpower, as a new energy resource stored huge amount of energy, wind powerreserves is around 2.74×109MW in the world. Amount them, 2×107MW are availableto be harnessed. It is 10 times larger than total amount of applicable waterenergy on the earth. Wind power has caused more and more attention across theworld.

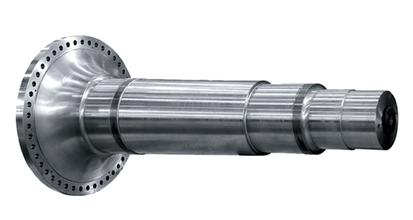

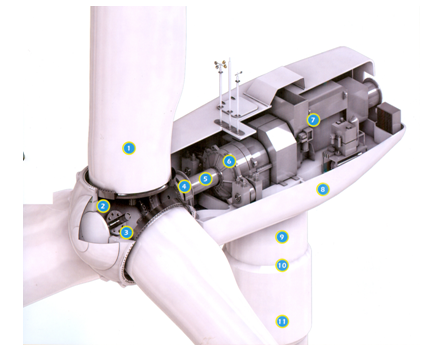

Mainshaft is a key component that connecting hub and gearbox, made of 34CrNiMo6、42CrMo4, etc. It is usedto transfer revolving torque of rotor blade to gearbox. Heave tight coupling ismost used device for connecting main shaft and gearbox, it guaranteesconcentric between main shaft and gearbox, also is able to avoid maintenance inoperation.

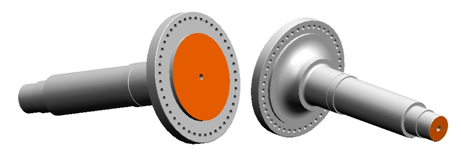

Twoside machining
Rough milling
Tool：FMP03-315-D60-LN25-12
Insert： LNKT2510-ZR/YBG302
Cutting data：Vc=120m/min，fz=
Finish milling
Tool：FMA07-315-C60-ON08-16
Insert： ONHU08T508-PF/YBM253
ONHU08T508-W/YBM253
Cutting data：Vc=150m/min，fz=0.2mm/z，ap=2.5mm，ae=
Shoulder milling
Rough milling
Tool：FMP03-315-D60-LN25-12
Insert： LNKT2510-ZR/YBG302
Cutting data：Vc=
Finish milling
Tool：EMP02-125-B40-AP16-10
Insert： APKT160408-PF/YBC301
Cutting data：Vc=150m/min，fz=0.15mm/z，ap=
External turning
Tool：PZLNR5050T25
Insert： ZNUX40-TC/YBC252
Cutting data：Vc=120m/min，fr=
Arc machining
Insert： RCMX3209MO/YBC251
Cutting data：Vc=100m/min，fr=
Grooving
Tool：QEKD3232R22-6N
Insert： ZRKD06-MG/YBG302
Cutting data：Vc=150m/min，fr=0.15mm/r，ap=6mm
Tool：ZTD04-450-XP40-SP14-02
Insert： SPGT140512-PM/YBG212(內)/YBG205（外）
Cutting data：Vc=120m/min，fr=0.12mm/r，
Smallface hole-making
Drilling
Tool：1736SU
Cutting data：Vc=60m/min，fr=0.16mm/r，
Threading
Tool：4111-M20
